产品说明

Tonlex Glass Technology (SHENZHEN) Co., Ltd.

NO.1,DONGFANG 1ST ROAD,2ND ORIENT INDUSTRIAL ZONE,SONGGANG TOWN,

BAOAN COUNTY，SHENZHEN CITY GUANGDONG PROVINCE, CHINA .

CERTIFICATE OF ANALYSIS

Report No.	2015072801
Model name	ROAD STUD
Makeing date	2015-7-24
Tests date	2015-7-28  15:42:20
Relevant   requirements	GB/T 24725-2009《Raised Pavement Markers》

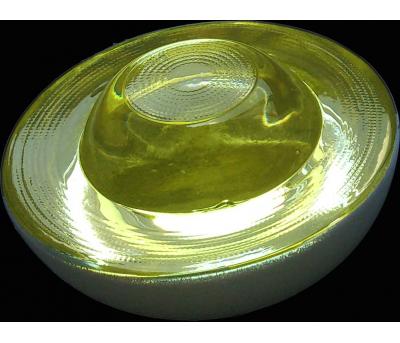

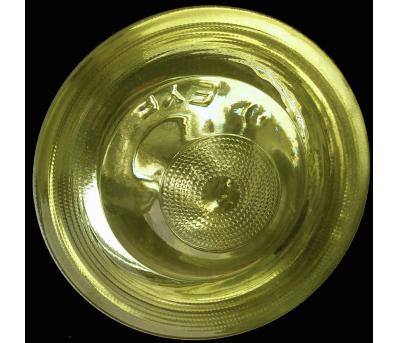

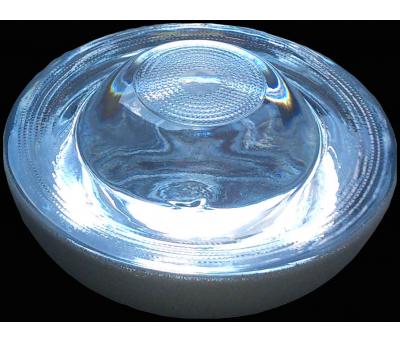

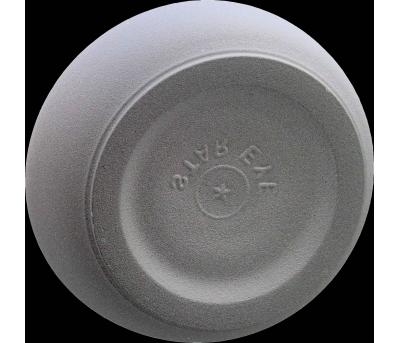

1. products name : Retro Reflective Angle:360 "ROAD STUD"



2. Size Diameter 100 mm

          height 49 mm

          Diameter of sphere 60 mm

          height 19 mm



3. Material:  Tempered Optical Glass of Highly Crystal Silicon



4. Color:  White



5. Retro Reflective Material:  Silvering Material



6. Protective Material :  Metallic Compound



7. Anti-Collision Resistance: 25. ton



8. Product N.W.:  550 g±10



Characteristics



1.   Excellent weathering resistance and long life span



2.   Fine wear resistance and chemistry stability. They are able to withstand the erosion    of tire, sand, different kinds of solvent and oil fuel. Moreover they also have strong resistance to acid rain as well as salt fog. As a consequence, they can be used in various kinds of severe road conditions for a long time.

3.   Safe, reliable and strong warning function.

Packing



1. Carton Measuremint :415mm*315mm*110mm

2. Packaging G.W.：13.90 kgs

              N.W.：13.40 kgs

3. Packaging Quantity:24 pieces/box



Room temperature	20℃		Pressure test		0.5kN/s
Number	Destroy limit (kN)
1	299.2
2	297.6
3	300.5
4	300.5
5	297.3
6	300.0
average	299.18
tester	Test model	TYW—300A
	Test Numbers	026#
	Test results	Good
Test results	According to the actual requirements, this batch test the compressive load > 290.0 kN



Inspectors：  DEAN WANG       Check member： WENSHENG TSUI





Tonlex Glass Technology (SHENZHEN) Co., Ltd.
